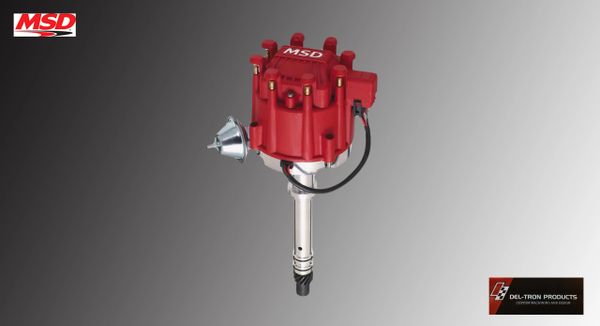

MSD PRO-BILLET CHEVY V8 HEI DISTRIBUTOR

DEL-TRON PRODUCTS GM HEI distributor

Part No.DEL-MSD8365

Distributor, Pro-Billet HEI, Magnetic Pickup, Vacuum Advance, HEI Style Terminal, Red, 4 Pin Ignition Module, Chevy V8, Each

A complete performance HEI distributor upgrade for Chevy V8 engines

Supplied with brass terminal distributor cap and rotor

Full spark energy output to 9,000 RPM

Supplied with a 8.5 amp, single spark, inductive discharge ignition module, MSD PN 83647, and MSD HEI Coil, PN 8225

Special oil tract improves lubrication to the distributor and cam gear

Nylon pads ensure smooth operation of the advance weights

Advance weight pins are staked and tig welded to the plate

Mechanical advance assembly can easily be locked out

Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

Polished steel shaft is QPQ coated and guided by a sealed ball bearing

CNC machined billet aluminum housing and billet aluminum base

Vacuum advance canister for improved economy (can be locked out)

Easy-to-adjust mechanical advance with supplied springs and stop bushings

CARB E.O. Approved

Please e-mail with questions
